Specification for Prong Magnets

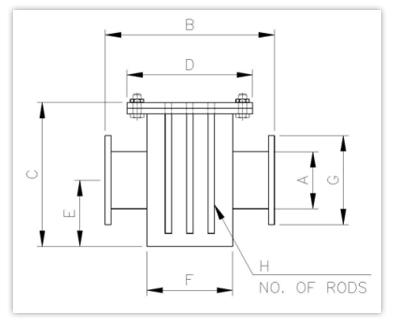

CAGE STYLE
ALL DIMENSION ARE IN INCHES									Litres/Min
Part No	A	B	C	D	E	F	G	H	Group1	Group 2	Group 3	Group 4	Weight Kg
STR 02	2	10	6	7.5	3.25	7.5	-9	5	546	382	191	82	13.2
STR 2.5	2.5	12	7.5	9.75	4.38	9.75	0	7	909	638	318	136	22.7
STR 03	3	12	9	9.75	4.38	9.75	0	7	909	636	318	136	22.7
STR 04	4	12	12	10.25	4.38	9.75	0	7	1227	859	432	186	27.2
STR 06	6	23	18	16	13.38	10.75	11	9	7273	5091	2545	1236	104.4
STR 08	8	26	24	19	17.25	12.75	13.5	9	7273	5091	2545	1236	124.7
STR 10	10	30	30	23.5	21	16	16	15	7273	5091	2545	1236	261
STR 12	12	34	36	25	21	18	19	15	14318	10023	500	2432	295
STR 14	14	36	42	27.5	23.38	20	21	15	14371	10023	500	2432	333.5
STR 16	16	40	46	32	25.63	24	23.5	17	23836	18545	8273	4000	442.4
STR 18	18	40	50	32	27.5	24	25	17	23836	16545	8273	4000	476.4

Note:

1.Technical data specification subject to change.
2.Special Prong Magnets can be made on request, Please send us your technical data and application, required for our engineers to provide.

---

PLATE STYLE
Model no.	A	B	C	D	Group1	Group 2	Group 3	Group 4	Weight Kg
STR-15	1.5"	4.25"	5.50"	10.0"	245	189	94	57	8
STR-20	2.0"	4.25"	5.50"	10.0"	245	189	94	57	8
STR-25	2.5"	4.75"	7.75"	13.5"	528	339	226	132	14
STR-30	3.0"	4.75"	7.75"	13.5"	528	339	226	132	14

Note:

1.Technical data specification subject to change.
2.Special Prong Magnets can be made on request, Please send us your technical data and application, required for our engineers to provide.
